MOHW-MD-(I)-No. 006204
During the teeth cleaning or other treatments, water mist, saliva, blood, and dental calculus may be generated in the oral cavity, which may affect the dentist's visual field and the patient's comfort. The function of a suction systems is to immediately suck the liquid, including saliva and blood in the oral cavity, thus ensuring the smoothness and clarity of the treatment process.

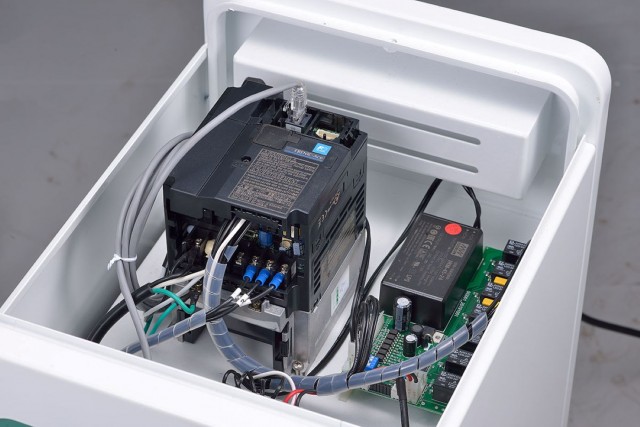

The water-cooled suction systems has the function of continuous and strong negative pressure suction to avoid treatment interruption. It is equipped with Fuji's inverter drive system to ensure stable suction force and can output full load power with only one click when needed, thereby meeting the strong suction needs. Its durable three-phase motor system lowers the risk of malfunctions and does not use auxiliary starting mechanisms with capacitors or mechanical switch contacts.

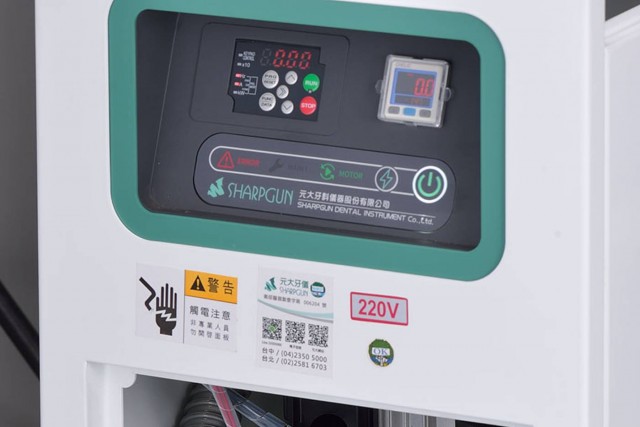

By using a digital diagnostic monitoring system to display error/fault codes, it is convenient to diagnose various causes of faults and conduct online troubleshooting. The water-cooled suction systems can automatically cut off the power and delay the shutdown to avoid motor coil burnout and reduce faults caused by frequent motor start-ups. In addition, the water-cooled suction systems uses stainless steel pumps to reduce problems caused by rust and wear, thus improving the product's service life.
The water-cooled suction systems plays an important role in oral treatment, ensuring the smoothness and clarity of the treatment process, lowering the risk of cross-infection, protecting the health of medical staff and patients, and improving patient comfort.
Model | VFD-20 | VFD-20A | |||||
---|---|---|---|---|---|---|---|
Voltage V/Hz | 220 / 60 | ||||||
Power kW | 1.19~1.89 | ||||||
Suction flow rate L/min | 180~340 | ||||||
Maximum vacuum cm-Hg | 55 | ||||||
Motor speed rpm | 0 ~ 4200 | ||||||
Water consumption L/min | 0.5 | ||||||
Noise level dB(A) | 45~70 | 42 ~ 65 | |||||
Weight kg | 38 | 60 | |||||
Dimensions Length x width x height mm |
520x330x720 |
