Extraoral suction System

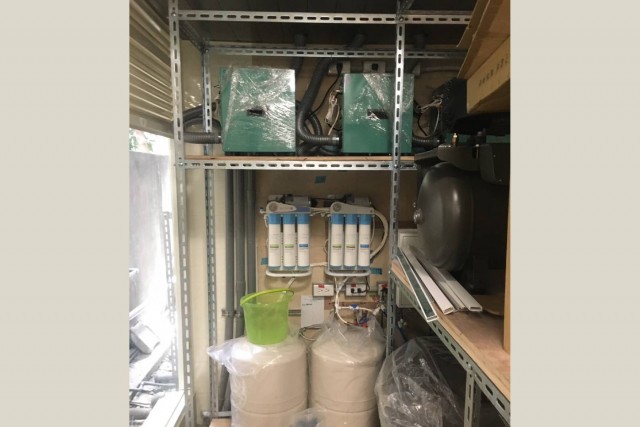

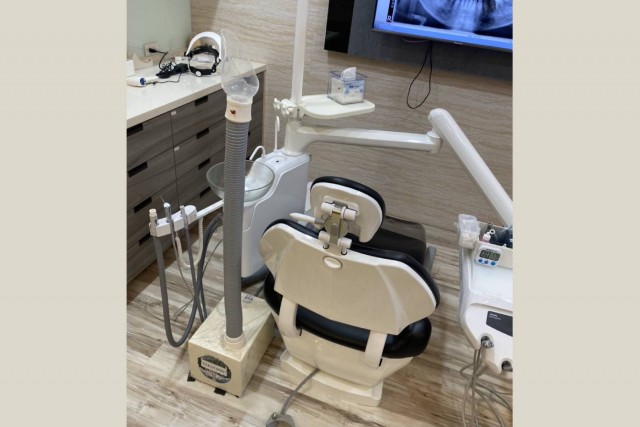

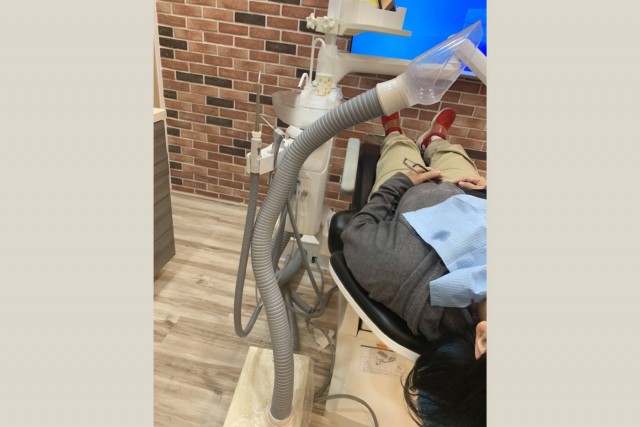

In the piping project from the diagnosis area to the machine room, a suction tube (Φ 40~50mm) is installed next to the treatment table. When using a high-speed handpiece or dental cleaning machine to treat the patient's oral cavity, aerosols, and splashes will be inhaled by the suction tube, and the inhaled gas will pass through a high-volume blast motor, producing an air volume of 102 ft³ per minute. The gas is filtered through the composite activated carbon filter and the high-efficiency particulate air (HEPA) filter (H14). The filtered gas is discharged to the outside through the exhaust pipe to keep the clinic fresh and clean and reduce the risk of viral cross-class infection.

High-reliable blower motor:Except for the fan blades, there are no other moving parts. The impeller is directly connected to the motor without gears or drive belts. Brushless motor, no wearing parts.

Exhaust gas pipeline: It can effectively absorb ozostomia or body odor, avoid gas retention in the clinic, and lower the risk of circulating infection.

Dust collector:Is used for grinding or processing denture debris.
