Reciprocating oil-free air compressor - NDC series

Model :

NDC-A2 NDC-A3

MOHW-MD-(I)-No. 006204

The reciprocating oil-free air compressor has excellent performance for dental treatment and surgery with its high-quality compressed air. The piston ring made of special materials has excellent heat resistance, which can maintain long-term durability even during continuous operation at high temperatures. It also has excellent wear resistance. The use of this special piston ring ensures superior airtightness under both high and low pressures.

Inquire

Quality assurance: ensure the availability of high-quality compressed air to provide superior medical quality for dental treatment.

Reduced risk of infection: Effectively protect and lower the risk of infection of patients to ensure the safety of the treatment process.

Pneumatic equipment maintenance: Ensure the safe operation of expensive pneumatic equipment in clinics, while avoiding wear and tear, and improving the service life of the equipment.

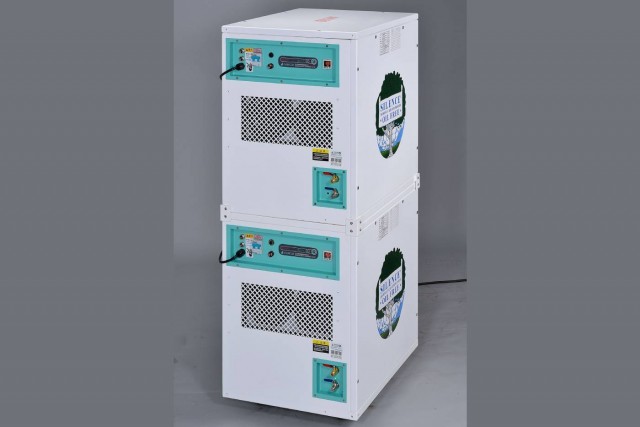

Digital control:digital pressure sensors accurately adjust the differential pressure and support the continuous operation of multiple host machines.

Strong & Long Life

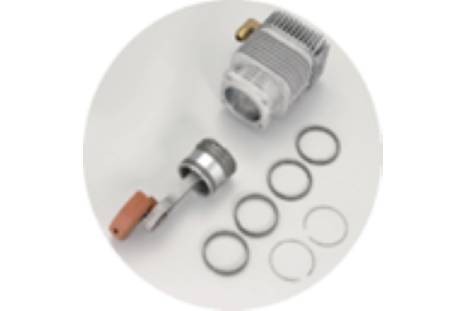

By using special materials with four layers of piston rings, it has good elasticity, long stroke, sufficient flow rate, and is not easy to wear.

Cleanliness

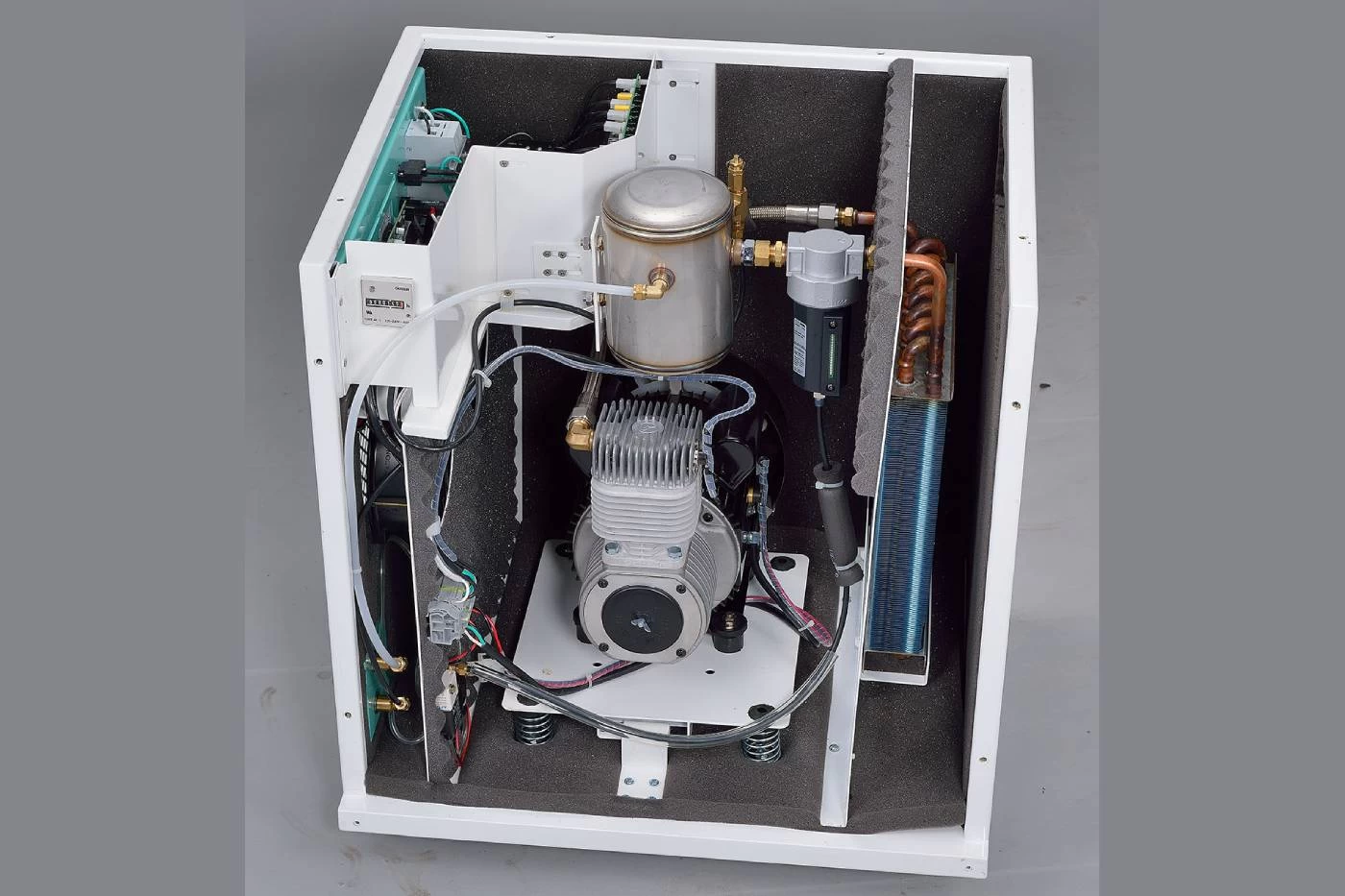

The output gas does not contain oil, thus protecting the terminal equipment. Its stainless steel gas storage tank, condensing copper fin chair, and 5 µm primary air filter significantly reduce the water content and impurities in the compressed air.

Safety

It has adopted suspension springs and high-density sound-absorbing cotton with excellent features for fire and high-temperature resistance. Its temperature protection system controls the fan to automatically start when the temperature of the motor cylinder exceeds 50 ℃. If the temperature of the motor exceeds 70 ℃, the air compressor will automatically stop.

Specification

Model	NDC-A2	NDC-A3
VoltageV/Hz	220 / 60	220 / 60
Power kW	1.21	1.85
Pressure (kg/cm²)	6.0~8.0	6.0~8.0
Exhaust volume (L/min) @ 8.0 kg/cm2	80	155
Mode of control	Automatic start and stop [Pressure detection]	Automatic start and stop [Pressure detection]
Outlet diameter	Rc 1/4"	Rc 1/4"
Noise leveldB(A)	65	65
Capacity of gas storage tank made of stainless steel (L)	2	2
Weight (kg)	77	89
Dimensions Length x Width x Height mm	630x515x715	630x515x715
