Precision air filter

Model :

AO010 AA010

Precision air filters play a crucial role in air compressor systems, and one of their main functions is to filter out various suspended solid particles, impurities, dust, moisture, oil, bacteria, etc. in the air, thus providing a good environment and maintaining physical health. In the pharmaceutical industry, precision air filters are essential devices for creating dust-free workshops, improving production speed and quality, and protecting the instruments and precision equipment.

Our precision air filters integrate unique filter elements with a specially designed airflow control system. The Parker Dominick Hunter OIL-X series products combine unique filter elements with a specially designed airflow control system, not only providing air quality that meets ISO8573-1 standards but also reducing the pressure difference to the lowest in the market, thus ensuring maximum efficiency and output.

Inquire

Parker's filtration experience has been validated around the world.
OIL-X ensures continuous provision of excellent air and offers a warranty period of up to 12 months. It has been certified by third-party institutions to comply with ISO8573-1 standards.

Maintaining the stability of the entire system's operation
Our precision air filters prevent mixtures of water, oil, dust, and other substances from depositing in the pipeline, which may reduce the flow area of the pipeline and increase the airflow resistance, and then lead to pipeline blockage, thus affecting the stable operation of the entire system.

Protecting the lifespan of expensive equipment
Our precision air filters effectively filter out dust and other impurities in compressed air, prevent the grinding effect on components with relative motion, reduce wear, and prevent leakage, ensuring the accuracy and service life of expensive equipment such as CAM/CAD dental milling machines, high-speed handpiece bearings, and water laser machines.

Specification

Model	AO010	AA010
Maximum flow velocity (L/min	60	60
Operational pressure (kg/cm²)	1.5~16	1.5~16
Dimensions of inlet and outlet	½”	¼”
Efficiency	High efficiency general protection Can remove 1µ particle impurities, condensation water, and oil content	High-efficiency oil removal Can remove 0.01µ particle impurities, condensation water, and oil content.
Weight (kg)	0.61	0.61
Dimensions (Length x width x heightmm)	76 x 66 x180	76 x 66 x180

Precision air filter

Model :

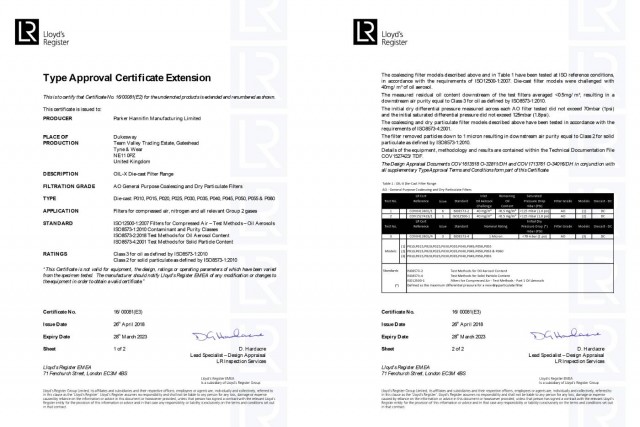

Type Approval Certificate Extension

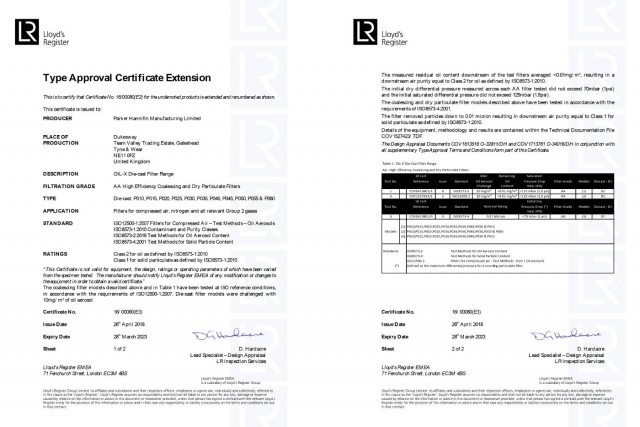

Type Approval Certificate Extension

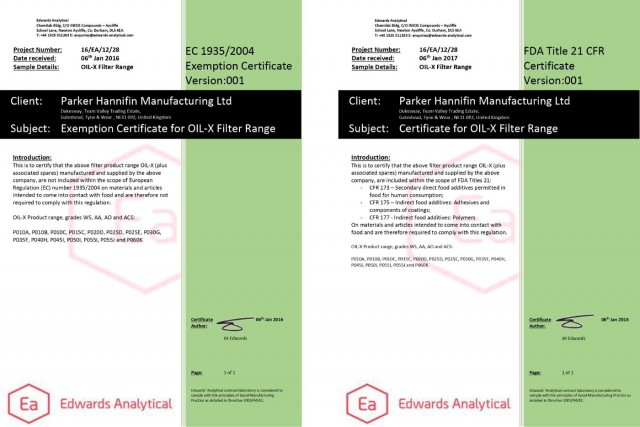

Exemption Certificate and FDA Certificate
